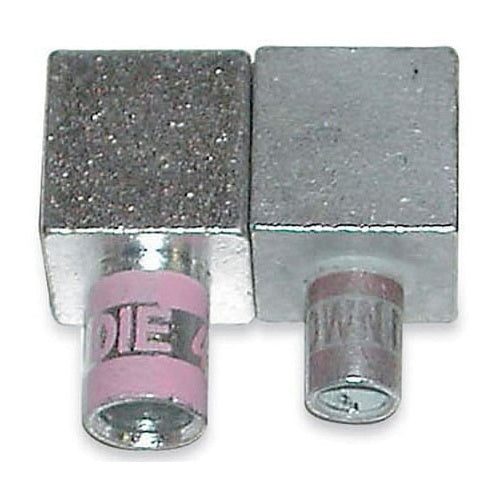

T&B MD2M-2 Motor Pigtail Disconnect Male 1Ld 2 Sz2 Brown

Overview

T&B MD2M-2 Motor Pigtail Disconnect Male 1Ld 2 Sz2 Brown

Product Specifications

• UPC: 78621078690
• Approval: UL, CSA
• Additional Information: Overall Dimension 1.09 Inch Length x 1 Inch Width; Color Brown
• Catalog Number: MD2M-2
• Brand Name: Blackburn/Color-Keyed
• Type: Male
• Voltage Rating: 600 Volt
• Conductor Material: Copper
• Conductor Size: 2 AWG
• Material: Tin Plated Copper
• Size: #2
• Catalog Description: KUBE MALE (ONE LOAD) COPPER MOTOR PIGTAIL DISCONNECT, WIRE SIZE 2 AWG, BODY SIZE 2, DIE COLOR CODE BROWN
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Male Type; Tin Plated Copper Material; #2 Size; Copper Conductor Material; UL, CSA Approval; 600 Volt Voltage Rating; 2 AWG Conductor Size; Overall Dimension 1.09 Inch Length X 1 Inch Width; Color Brown
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Pigtail Motor Terminal
• Unspsc: 39121447
• UPC 12 Digit: 786210786902
• SKU Name: t&b md2m2
