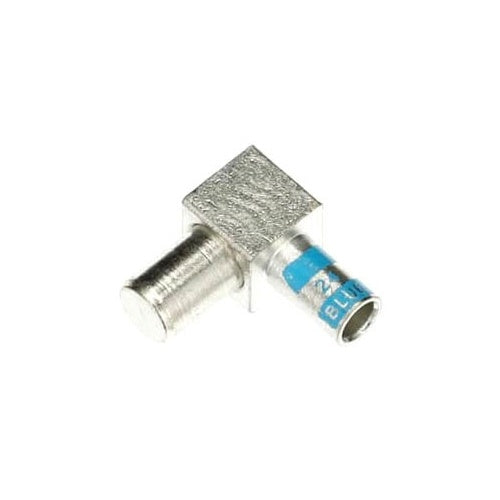

T&B MD6M-2 Motor Pigtail Disconnect Male 1Ld 6 Sz2 Blue

Overview

T&B MD6M-2 Motor Pigtail Disconnect Male 1Ld 6 Sz2 Blue

Product Specifications

• UPC: 78621078686
• Catalog Number: MD6M-2
• Type: Male
• Voltage Rating: 600 Volt
• Conductor Size: 6 AWG
• Material: Tin Plated Copper
• Size: #2
• Approval: UL, CSA
• Additional Information: Die Color Blue; Overall Dimension 1.02 Inch Length x 1 Inch Width x 0.5 Inch Thickness
• Catalog Description: KUBE MALE (ONE LOAD) COPPER MOTOR PIGTAIL DISCONNECT, WIRE SIZE 6 AWG, BODY SIZE 2, DIE COLOR CODE BLUE
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Male Type; Tin Plated Copper Material; #2 Size; UL, CSA Approval; 600 Volt Voltage Rating; 6 AWG Conductor Size; Die Color Blue; Overall Dimension 1.02 Inch Length X 1 Inch Width X 0.5 Inch Thickness
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Pigtail Motor Terminal
• Unspsc: 39121447
• UPC 12 Digit: 786210786865
• SKU Name: t&b md6m2

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
