T&B PB216 Double Post Panel Base B16/T16/C6/Dd72

Overview

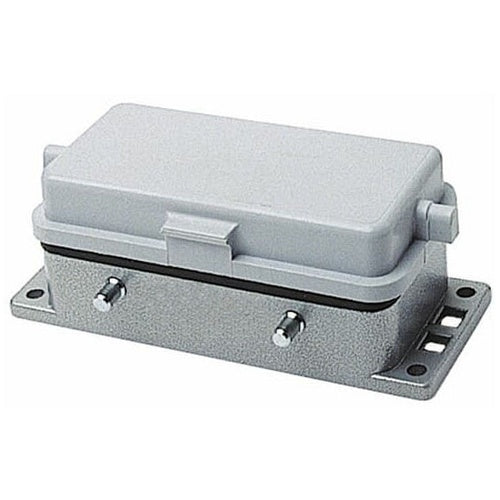

T&B PB216 Double Post Panel Base B16/T16/C6/Dd72

Product Specifications

• UPC: 78621079071
• Catalog Number: PB216
• Brand Name: Pos-E-Kon
• Model: PB
• Type: Panel Base, Standard Mount, Double Lever Locking
• Used On: B/C/D/DD/M Series 10/16/35 Amp 600 Volt AC Pin and Sleeve Connector
• Additional Information: Overall Dimension 4.49 Inch x 1.69 Inch x 1.06 Inch; Number of Contacts 16; Material Epoxy Powder Coated Die-Cast Aluminum Alloy; Approval CSA
• Catalog Description: DOUBLE POST PANEL BASE WITH ACCESS COVER FOR USE WITH SERIES B16, T16, C6 AND DD72.
• Category: Pin & Sleeve Devices
• Full Technical Description: Panel Base, Standard Mount, Double Lever Locking Type; B/C/D/Dd/M Series 10/16/35 Amp 600 Volt AC Pin and Sleeve Connector Used on; Overall Dimension 4.49 Inch X 1.69 Inch X 1.06 Inch; Number of Contacts 16; Material Epoxy Powder Coated Die-Cast Aluminum Alloy; Approval CSA; PB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Pin and Sleeve Device Accessories
• Unspsc: 39121424
• UPC 12 Digit: 786210790718
• SKU Name: t&b pb216

Resources

• Product Spec Sheet
