Product information
Overview

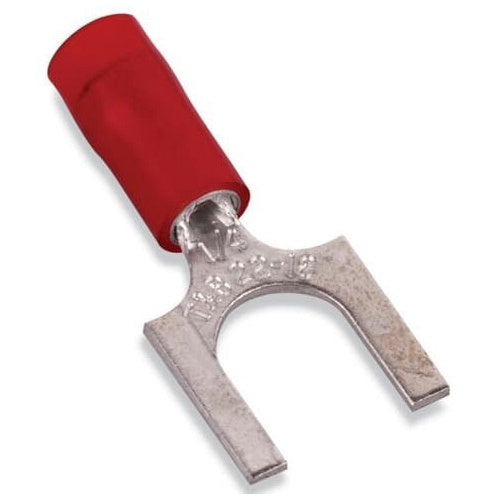

T&B RA1123 Insulated Nylon Fork Terminal 22-16 Bh No8 Red
Product Specifications
- UPC: 78621081759
- Temperature Rating: 105 Deg C
- Standard Package: 5000
- Approval: UL, CSA
- Additional Information: Size 0.86 Inch L x 0.31 Inch W; Finish Electroplated Tin
- Catalog Number: RA1123
- Model: RA
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: #8
- Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH .83 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Size 0.86 Inch L X 0.31 Inch W; Finish Electroplated Tin; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210817590
- SKU Name: t&b ra1123
