Product information
Overview

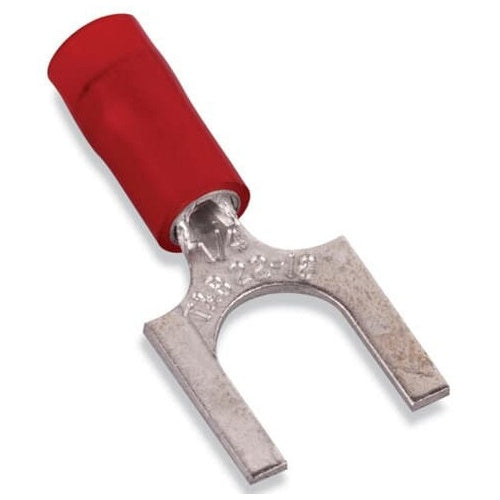

T&B RA1163 Insulated Nylon Fork Terminal 22-16 Bolt 1/4"
Product Specifications
- UPC: 78621083003
- Temperature Rating: 105 Deg C
- Standard Package: 5000
- Approval: UL, CSA
- Additional Information: Size 0.95 Inch L x 0.44 Inch W; Finish Electroplated Tin
- Catalog Number: RA1163
- Model: RA
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: 1/4 Inch
- Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH .95 INCHES, WIDTH .44 INCHES, MAXIMUM INSULATION .136, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Size 0.95 Inch L X 0.44 Inch W; Finish Electroplated Tin; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210830032
- SKU Name: t&b ra1163
