Product information
Overview

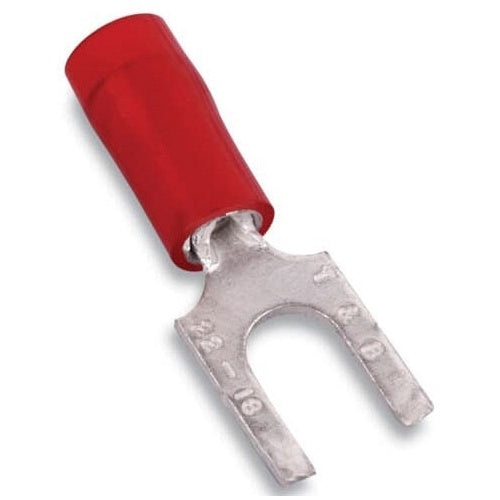

T&B RA18-10FS Insulated Nylon Fork Terminal Flange 22-16 No10 Red
Product Specifications
- UPC: 78621080393
- Temperature Rating: 105 Deg C
- Standard Package: 500
- Approval: UL, CSA
- Additional Information: Size 0.93 Inch L x 0.38 Inch W; Finish Electroplated Tin
- Catalog Number: RA18-10FS
- Model: RA
- Type: Flanged
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: #10
- Catalog Description: NYLON INSULATED FORK TERMINAL WITH FLANGED TONGUE, LENGTH .93 INCHES, WIDTH .38 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #10, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Flanged Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 500 Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Size 0.93 Inch L X 0.38 Inch W; Finish Electroplated Tin; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803937
- SKU Name: t&b ra1810fs
