Product information
Overview

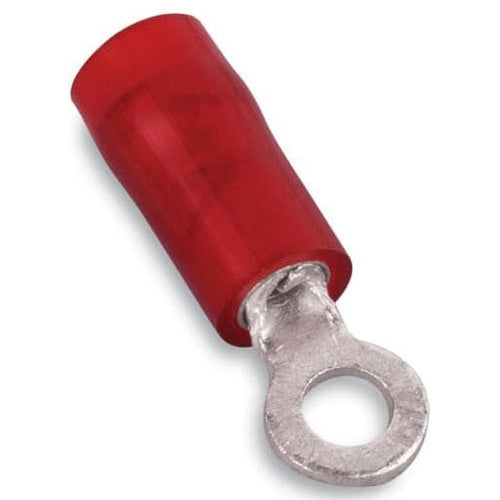

T&B RA18-14 Insulated Nylon Ring Terminal 22-16 Bolt 1/4 Red
Product Specifications
- UPC: 78621080394
- Temperature Rating: 105 Deg C
- Standard Package: 500 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.07 Inch Length x 0.46 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: RA18-14
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: 1/4 Inch
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .46 INCHES, MAXIMUM INSULATION .136, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COLOR RED, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.07 Inch Length X 0.46 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803944
- SKU Name: t&b ra1814
