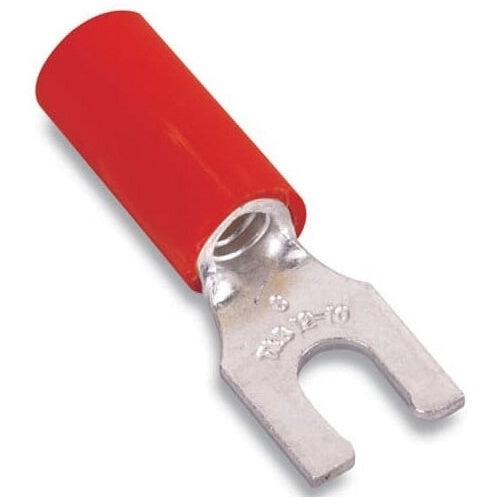

T&B RA18-6FL Insulated Nylon Locking Fork Terminal 22-16 No6 Red

Overview

T&B RA18-6FL Insulated Nylon Locking Fork Terminal 22-16 No6 Red

Product Specifications

• UPC: 78621088730
• Standard Package: 100 per Pack
• Approval: UL 486A, CSA 22.2
• Additional Information: Size 0.86 Inch Length x 0.25 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: RA18-6FL
• Type: Locking
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Temperature Rating: 105 Deg C
• Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH .86 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #6, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Per Pack Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Size 0.86 Inch Length X 0.25 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210887302
• SKU Name: t&b ra186fl
