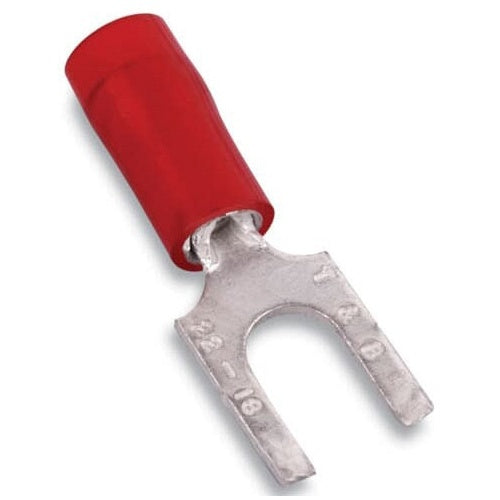

T&B RA18-6FS Insulated Nylon Fork Terminal Flange 22-16 No6 Red

Overview

T&B RA18-6FS Insulated Nylon Fork Terminal Flange 22-16 No6 Red

Product Specifications

• UPC: 78621080387
• Temperature Rating: 105 Deg C
• Standard Package: 500
• Approval: UL, CSA
• Additional Information: Size 3/4 Inch L x 0.28 Inch W; Finish Electroplated Tin
• Catalog Number: RA18-6FS
• Model: RA
• Type: Flanged
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Catalog Description: NYLON INSULATED FORK TERMINAL WITH FLANGED TONGUE, LENGTH .75 INCHES, WIDTH .28 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #6, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Flanged Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 500 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Size 3/4 Inch L X 0.28 Inch W; Finish Electroplated Tin; RA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803876
• SKU Name: t&b ra186fs
