Product information
Overview

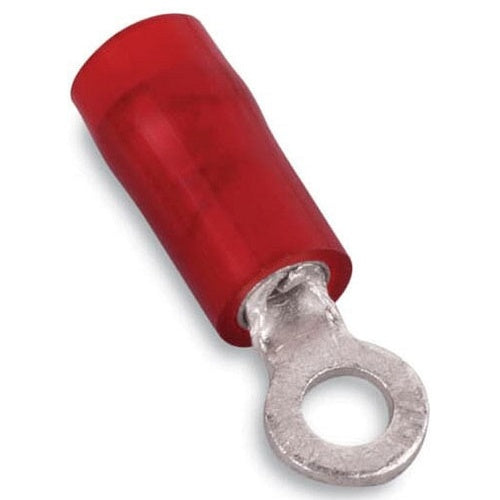

T&B RA18-8 Insulated Nylon Ring Terminal 22-16 Bolt No8 Red
Product Specifications
- UPC: 78621080388
- Standard Package: 500 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length x 0.26 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Catalog Number: RA18-8
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: #8
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .89 INCHES, WIDTH .26 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COLOR RED, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 500 Per Outer Pack Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length X 0.26 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803883
- SKU Name: t&b ra188
