Product information
Overview

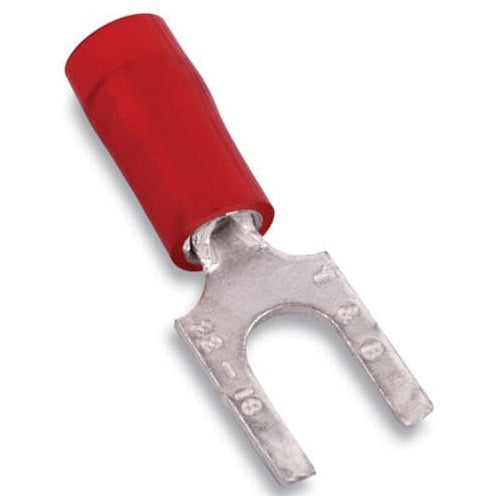

T&B RA18-8FS Insulated Nylon Fork Terminal Flange 22-16 No8 Red
Product Specifications
- UPC: 78621080390
- Standard Package: 100 per Pack
- Approval: UL 486A, CSA 22.2
- Additional Information: Size 0.89 Inch Length x 0.31 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: RA18-8FS
- Type: Flanged Tongue
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: #8
- Temperature Rating: 105 Deg C
- Catalog Description: NYLON INSULATED FORK TERMINAL WITH FLANGED TONGUE, LENGTH .89 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .136, BOLT HOLE #8, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 100 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Flanged Tongue Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Per Pack Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Size 0.89 Inch Length X 0.31 Inch Width; Maximum Insulation 0.136 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210803906
- SKU Name: t&b ra188fs
