Product information
Overview

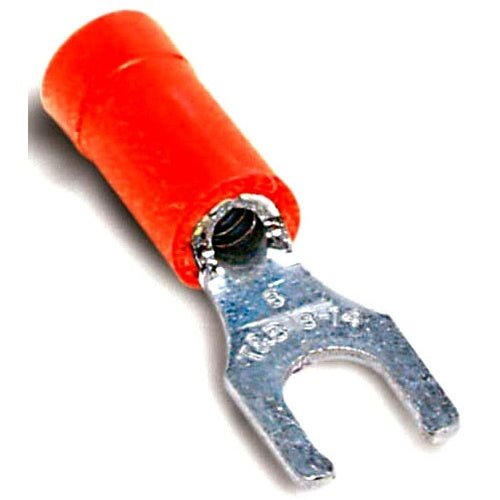

T&B RA2257 Insulated Vinyl Locking Fork Terminal 22-16 Bolt No10
Product Specifications
- UPC: 78621081792
- Temperature Rating: 105 Deg C
- Standard Package: 5000
- Approval: UL, CSA
- Additional Information: Size 0.97 Inch L x 0.29 Inch W; Finish Electroplated Tin
- Catalog Number: RA2257
- Model: RA
- Type: Locking
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Vinyl Insulated
- Stud Size: #10
- Catalog Description: VINYL-INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .150, BOLT HOLE #10, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PIECE
- Category: Small Terminals & Connectors
- Full Technical Description: Locking Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Size 0.97 Inch L X 0.29 Inch W; Finish Electroplated Tin; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210817927
- SKU Name: t&b ra2257
