Product information
Overview

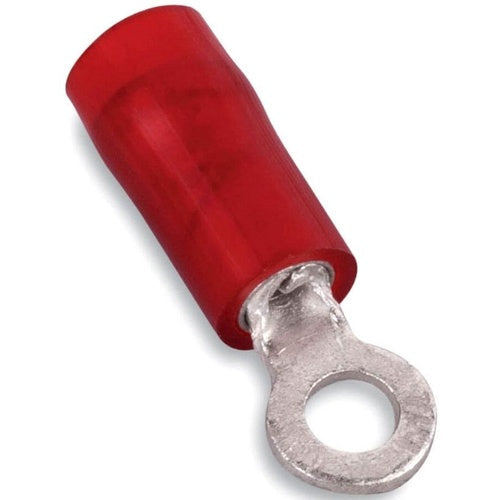

T&B RA713 Insulated Nylon Ring Terminal 22-16 Bolt 1/4 Red
Product Specifications
- UPC: 78621081718
- Standard Package: 1000
- Approval: UL 486A/B/C/310, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.1 Inch Length x 0.46 Inch Width x 0.03 Inch Thickness; Insulation Diameter 0.136 Inch; Material Electro Tin Plated Copper; Flammability Rating UL 94V-2
- Catalog Number: RA713
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Nylon Insulated
- Stud Size: 1/4 Inch
- Temperature Rating: 105 Deg F
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .46 INCHES, MAXIMUM INSULATION .136, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COLOR RED, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486A/B/C/310, CSA C22.2 Approval; 105 Deg F Temperature Rating; 1000 Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.1 Inch Length X 0.46 Inch Width X 0.03 Inch Thickness; Insulation Diameter 0.136 Inch; Material Electro Tin Plated Copper; Flammability Rating UL 94V-2
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210817187
- SKU Name: t&b ra713
