Product information
Overview

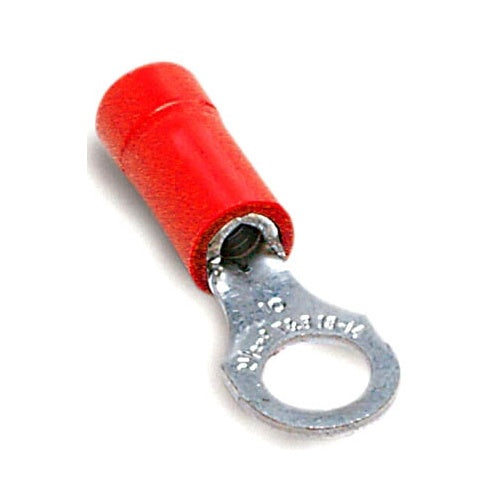

T&B RA717 Insulated Vinyl Ring Terminal 22-16 1/4" Red
Product Specifications
- UPC: 78621081720
- Temperature Rating: 105 Deg C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 1.13 Inch L x 1/2 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: RA717
- Model: RA
- Type: Standard
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Color: Red
- Insulation Type: Vinyl Insulated
- Stud Size: 1/4 Inch
- Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH 1.13 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .150, BOLT HOLE 1/4 INCH, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type; Dimension 1.13 Inch L X 1/2 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210817200
- SKU Name: t&b ra717
