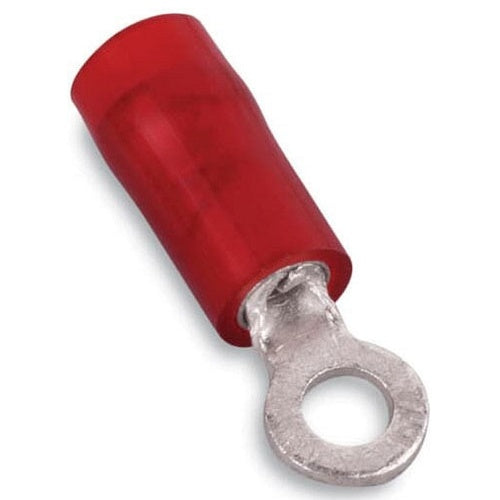

T&B RA723 Insulated Nylon Ring Terminal 22-16 Bolt 5/16 Red

Overview

T&B RA723 Insulated Nylon Ring Terminal 22-16 Bolt 5/16 Red

Product Specifications

• UPC: 78621019923
• Temperature Rating: 105 Deg C
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.07 Inch L x 0.46 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RA723
• Model: RA
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Stud Size: 5/16 Inch
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .46 INCHES, MAXIMUM INSULATION .136, BOLT HOLE 5/16 INCH, WIRE RANGE #22-#16 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; 5/16 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1.07 Inch L X 0.46 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210199238
• SKU Name: t&b ra723
