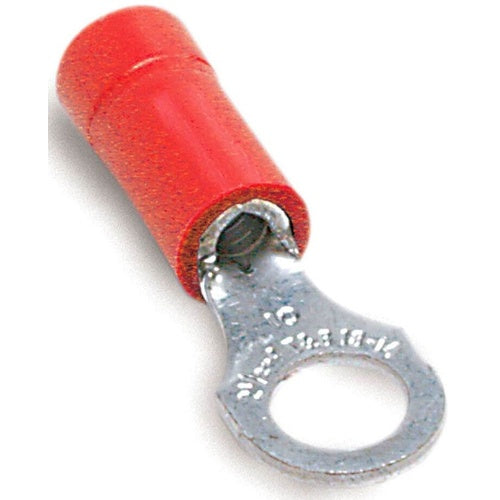

T&B RA77 Insulated Vinyl Ring Terminal 22-16 Bolt No4 Red

Overview

T&B RA77 Insulated Vinyl Ring Terminal 22-16 Bolt No4 Red

Product Specifications

• UPC: 78621081697
• Temperature Rating: 105 Deg C
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 0.97 Inch L x 0.31 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RA77
• Model: RA
• Type: Standard
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 16 AWG
• Color: Red
• Insulation Type: Vinyl Insulated
• Stud Size: #4
• Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .150, BOLT HOLE #4, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Red Color; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; #4 Stud Size; Vinyl Insulated Insulation Type; Dimension 0.97 Inch L X 0.31 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RA Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210816975
• SKU Name: t&b ra77
