Product information
Overview

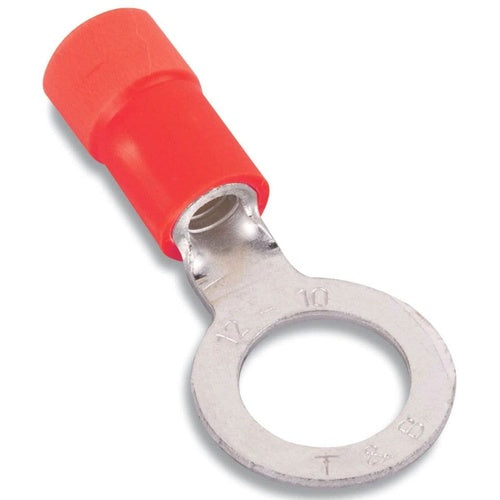

T&B RA867-170 Expanded Insulated Vinyl Ring Terminal 22-16, No8
Product Specifications
- UPC: 78621081746
- Temperature Rating: 105 DEG C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: DIMENSION 0.97 INCH LENGTH X 0.31 INCH WIDTH X 0.03 INCH THICK; FINISH ELECTROPLATED TIN
- Catalog Number: RA867-170
- Brand Name: Sta-Kon.
- Model: RA
- Type: STANDARD
- Minimum Conductor Size: 22 AWG
- Maximum Conductor Size: 16 AWG
- Insulation Type: VINYL INSULATED
- Stud Size: #8
- Catalog Description: EXPANDED VINYL-INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #8, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; 22 AWG min. Conductor Size; 16 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; Sta-Kon. Brand; Dimension 0.97 Inch Length X 0.31 Inch Width X 0.03 Inch Thick; Finish Electroplated Tin; RA Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210817460
- SKU Name: t&b ra867170
