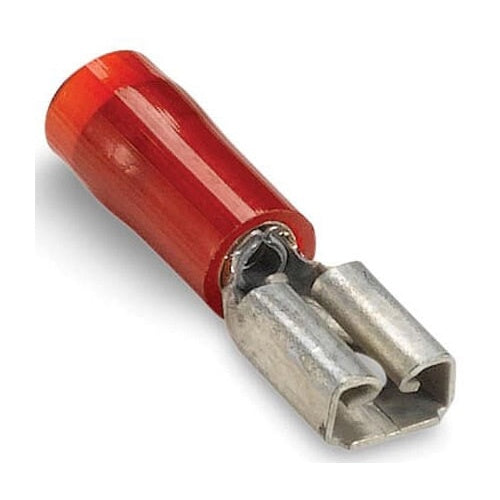

T&B RAD1823 Insulated Nylon Female 187 Disconnect 22-18 Len .83

Overview

T&B RAD1823 Insulated Nylon Female 187 Disconnect 22-18 Len .83

Product Specifications

• UPC: 78621081570
• Temperature Rating: 105 Deg C
• Standard Package: 5000 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 300 Volt; Overall Dimension 0.83 Inch Length x 0.23 Inch Width; Material Electro Tin Plated Brass
• Catalog Number: RAD1823
• Brand Name: Sta-Kon
• Model: 187
• Tab Size: 0.187 Inch x 0.02 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Insulation Type: Nylon Insulated
• Catalog Description: NYLON INSULATED FEMALE DISCONNECT, LENGTH .83 INCHES, WIDTH .23 INCHES, MAXIMUM INSULATION .136, TAB SIZE .187X.020, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; Nylon Insulated Insulation Type; 0.187 Inch X 0.02 Inch Tab Size; Voltage Rating 300 Volt; Overall Dimension 0.83 Inch Length X 0.23 Inch Width; Material Electro Tin Plated Brass; 187 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Female Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210815701
• SKU Name: t&b rad1823
