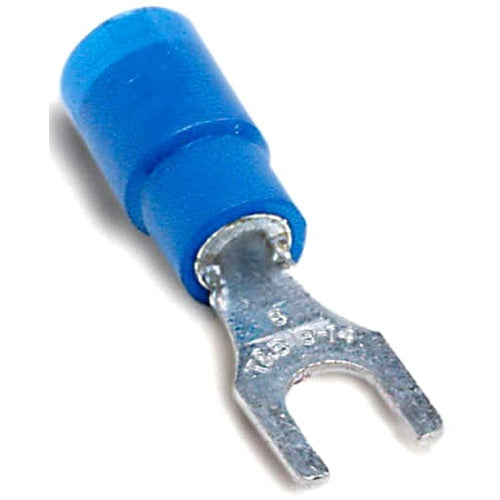

T&B RB1157-200 ExPanduited Insulated Vinyl Fork Trm, 18-14, No10

Overview

T&B RB1157-200 Expanded Insulated Vinyl Fork Trm, 18-14, No10

Product Specifications

• UPC: 78621088328
• Approval: UL, UL (Canada and US), CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length x 0.31 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Number: RB1157-200
• Type: Expanded
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Stud Size: #10
• Standard Package: 5000
• Catalog Description: EXPANDED VINYL-INSULATED FORK TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .200, BOLT HOLE #10, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Expanded Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, UL (Canada and Us), CSA Approval; 5000 Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.97 Inch Length X 0.31 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210883281
• SKU Name: t&b rb1157200
