Product information
Overview

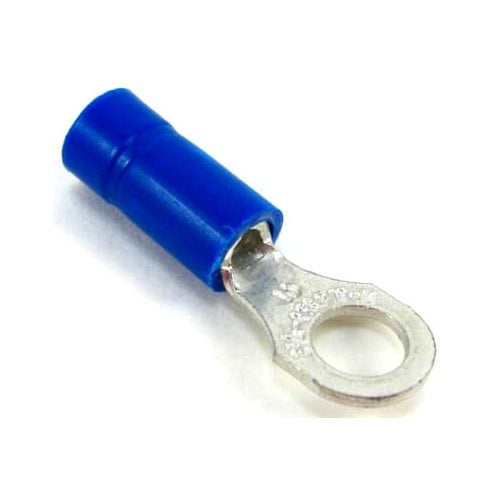

T&B RB1327 Insulated Vinyl Ring Terminal 18-14 No4 Awg Blue
Product Specifications
- UPC: 78621081925
- Temperature Rating: 105 Deg C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 0.94 Inch L x 1/4 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: RB1327
- Model: RB
- Type: Standard
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Vinyl Insulated
- Stud Size: #4
- Catalog Description: VINYL-INSULATED RING TERMINAL, LENGTH .94 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #4, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; #4 Stud Size; Vinyl Insulated Insulation Type; Dimension 0.94 Inch L X 1/4 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RB Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210819259
- SKU Name: t&b rb1327
