Product information
Overview

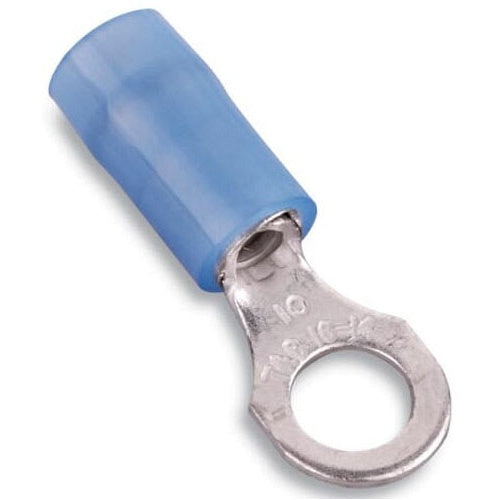

T&B RB14-10 Insulated Nylon Ring Terminal 18-14 Bolt No10 Blue
Product Specifications
- UPC: 78621080412
- Standard Package: 500 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length x 0.31 Inch Width; Stock Thickness 0.03 Inch; Material Copper; Finish Tin Plated
- Catalog Number: RB14-10
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Nylon Insulated
- Stud Size: #10
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .89 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .162, BOLT HOLE #10, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 500 Per Outer Pack Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length X 0.31 Inch Width; Stock Thickness 0.03 Inch; Material Copper; Finish Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210804125
- SKU Name: t&b rb1410
