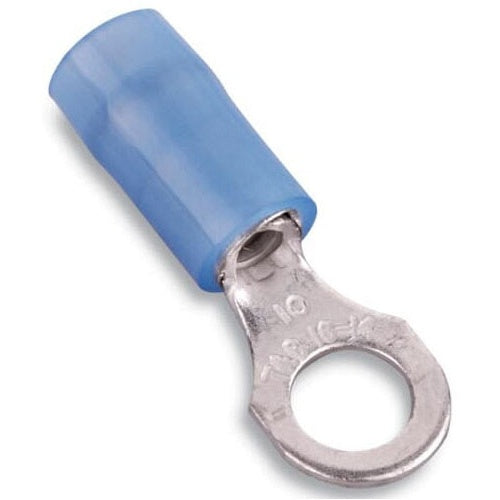

T&B RB14-12 Insulated Nylon Ring Terminal 18-14 1/2" Blue

Overview

T&B RB14-12 Insulated Nylon Ring Terminal 18-14 1/2" Blue

Product Specifications

• UPC: 78621087852
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1-1/4 Inch Length x 0.72 Inch Width x 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: RB14-12
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: 1/2 Inch
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.25 INCHES, WIDTH .72 INCHES, MAXIMUM INSULATION .162, BOLT HOLE 1/2 INCH, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 500 Per Outer Pack Standard Package; 1/2 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1-1/4 Inch Length X 0.72 Inch Width X 0.03 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210878522
• SKU Name: t&b rb1412
