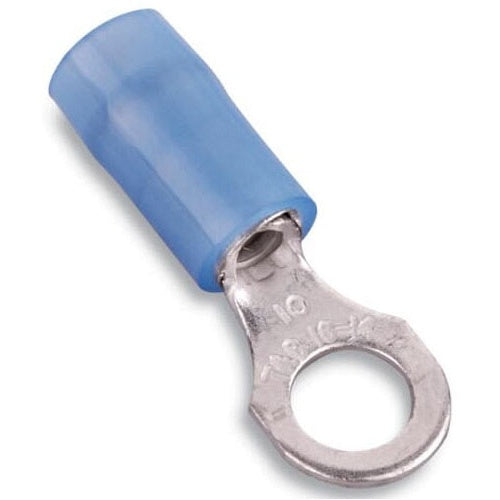

T&B RB14-4 Insulated Nylon Ring Terminal 18-14 Bolt No4 Blue

Overview

T&B RB14-4 Insulated Nylon Ring Terminal 18-14 Bolt No4 Blue

Product Specifications

• UPC: 78621080399
• Approval: UL 486A/B, CSA 22.2
• Additional Information: Size 0.72 Inch Length x 0.26 Inch Width; Maximum Insulation 0.162 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: RB14-4
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: #4
• Temperature Rating: 105 Deg C
• Standard Package: 100 per Pack
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .72 INCHES, WIDTH .26 INCHES, MAXIMUM INSULATION .162, BOLT HOLE #4, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 100 Per Pack Standard Package; #4 Stud Size; Nylon Insulated Insulation Type; Size 0.72 Inch Length X 0.26 Inch Width; Maximum Insulation 0.162 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210803999
• SKU Name: t&b rb144
