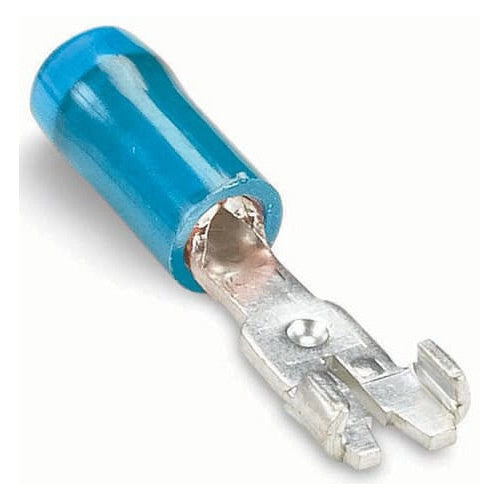

T&B RB14D Insulated Nylon Wristlock Disconnect 16-14 Blue

Overview

T&B RB14D Insulated Nylon Wristlock Disconnect 16-14 Blue

Product Specifications

• UPC: 78621080429
• Standard Package: 50
• Approval: UL
• Additional Information: Thickness 0.03 Inch; Temperature Rating 105 Deg C; Voltage Rating 600 V
• Catalog Number: RB14D
• Model: RB
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Body Material: Electro Tin Plated Brass
• Insulation Type: Nylon Insulated
• Color: Blue
• Size: 0.99 Inch L
• Catalog Description: NYLON INSULATED WRISTLOCK DISCONNECT, LENGTH 1.70 INCHES, SINGLE PIECE LENGTH .99 INCHES, MAXIMUM INSULATION .162, WIRE RANGE #16-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: 0.99 Inch L Size; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL Approval; 50 Standard Package; Electro Tin Plated Brass Body Material; Nylon Insulated Insulation Type; Thickness 0.03 Inch; Temperature Rating 105 Deg C; Voltage Rating 600 V; RB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Male/Female Locking Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210804293
• SKU Name: t&b rb14d
