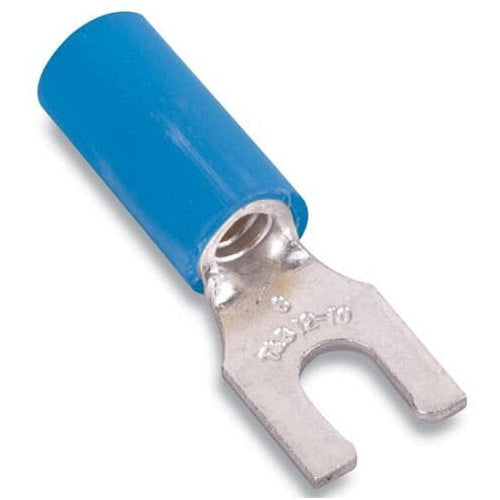

T&B RB2213 Insulated Nylon Locking Fork Terminal 18-14 No6 Blue

Overview

T&B RB2213 Insulated Nylon Locking Fork Terminal 18-14 No6 Blue

Product Specifications

• UPC: 78621088741
• Temperature Rating: 105 Deg C
• Standard Package: 5000 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.87 Inch Length x 1/4 Inch Width; Material Copper; Finish Electro Tin Plated
• Catalog Number: RB2213
• Brand Name: Sta-Kon
• Type: Locking
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH .87 INCHES, WIDTH .25 INCHES, MAXIMUM INSULATION .162, BOLT HOLE #6, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.87 Inch Length X 1/4 Inch Width; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210887418
• SKU Name: t&b rb2213
