Product information
Overview

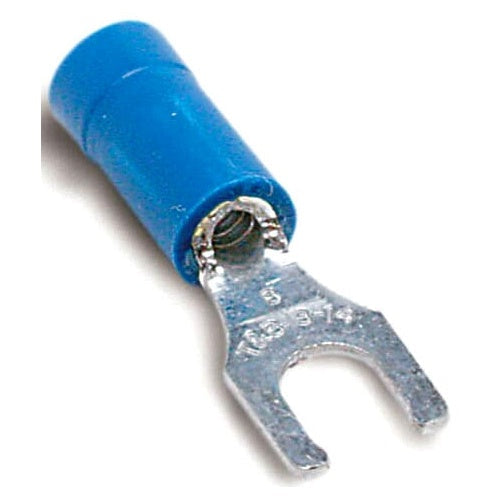

T&B RB2237 Insulated Vinyl Locking Fork Terminal 18-14 Bolt No8
Product Specifications
- UPC: 78621081945
- Temperature Rating: 105 Deg C
- Approval: UL, CSA
- Additional Information: Size 0.97 Inch L x 0.29 Inch W; Finish Electroplated Tin
- Catalog Number: RB2237
- Model: RB
- Type: Locking
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Vinyl Insulated
- Stud Size: #8
- Catalog Description: VINYL INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #8, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Locking Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 Stud Size; Vinyl Insulated Insulation Type; Size 0.97 Inch L X 0.29 Inch W; Finish Electroplated Tin; RB Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210819457
- SKU Name: t&b rb2237
