Product information
Overview

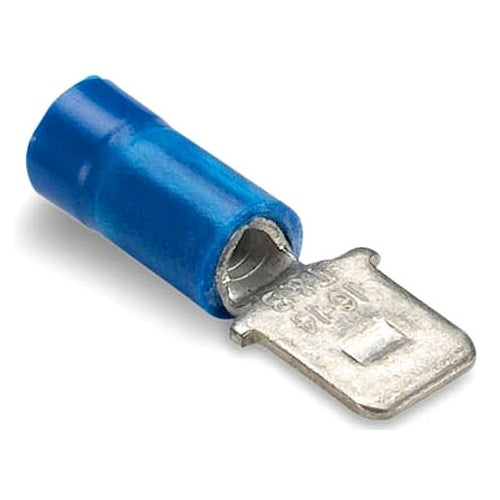

T&B RB2517 Insulated Vinyl Male-250 Tab 16-14 Awg Blue
Product Specifications
- UPC: 78621081950
- Temperature Rating: 105 Deg C
- Standard Package: 1000 Bulk
- Approval: UL, CSA
- Additional Information: Overall Dimension 0.95 Inch L; Material Electro-Tin Plated Brass
- Catalog Number: RB2517
- Model: 250
- Type: Tab Style, Barrel Entry
- Tab Size: 0.25 Inch x 0.032 Inch
- Minimum Conductor Size: 16 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Vinyl Insulated
- Catalog Description: VINYL INSULATED MALE TAB, LENGTH .95 INCHES, MAXIMUM INSULATED .170, TAB SIZE .250X.032, WIRE RANGE #16-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Tab Style, Barrel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 1000 Bulk Standard Package; Vinyl Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Overall Dimension 0.95 Inch L; Material Electro-Tin Plated Brass; 250 Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Male Disconnect
- Unspsc: 39121432
- UPC 12 Digit: 786210819501
- SKU Name: t&b rb2517
