Product information
Overview

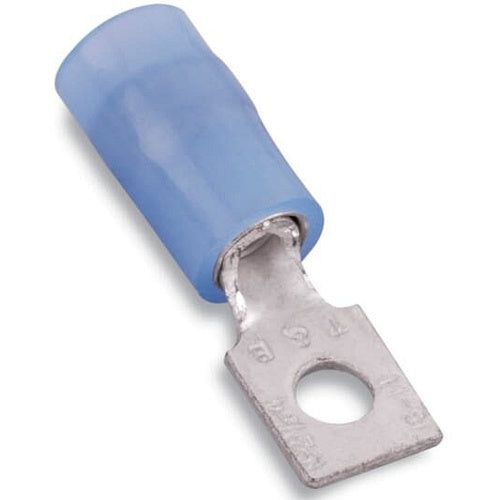

T&B RB484 Insulated Nylon Rectangular Ring Terminal 16-14 No6 Blue
Product Specifications
- UPC: 78621081829
- Temperature Rating: 105 Deg C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 1.015 Inch L x 0.237 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; Shape Rectangular
- Catalog Number: RB484
- Model: RB
- Type: Standard, Funnel Entry
- Minimum Conductor Size: 16 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Nylon Insulated
- Stud Size: #6
- Catalog Description: NYLON INSULATED RECTANGULAR RING TERMINAL, LENGTH 1.015 INCHES, WIDTH .237 INCHES, BOLT HOLE #6, WIRE RANGE #16-#14 AWG, COLOR BLUE, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard, Funnel Entry Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Dimension 1.015 Inch L X 0.237 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; Shape Rectangular; RB Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210818290
- SKU Name: t&b rb484
