Product information
Overview

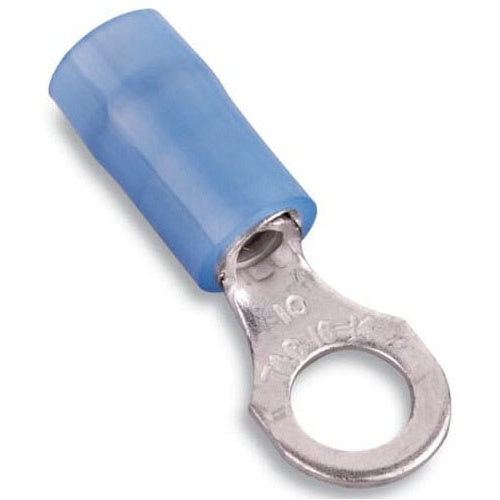

T&B RB723 Insulated Nylon Ring Terminal 18-14 5/16" Blue
Product Specifications
- UPC: 78621081843
- Temperature Rating: 105 Deg C
- Standard Package: 1000
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 1.08 Inch L x 0.47 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: RB723
- Model: RB
- Type: Standard
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Nylon Insulated
- Stud Size: 5/16 Inch
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.08 INCHES, WIDTH .47 INCHES, MAXIMUM INSULATION .162, BOLT HOLE 5/16 INCH, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; 5/16 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1.08 Inch L X 0.47 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RB Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210818436
- SKU Name: t&b rb723
