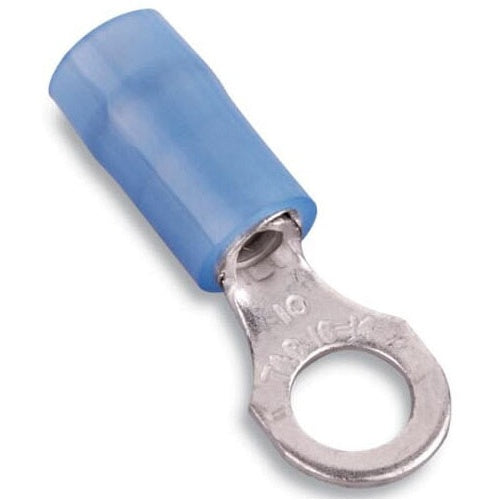

T&B RB753 Insulated Nylon Ring Terminal 18-14 1/2" Blue

Overview

T&B RB753 Insulated Nylon Ring Terminal 18-14 1/2" Blue

Product Specifications

• UPC: 78621081854
• Temperature Rating: 105 Deg C
• Standard Package: 1000
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1-1/4 Inch L x 0.72 Inch W x 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RB753
• Model: RB
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: 1/2 Inch
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.25 INCHES, WIDTH .72 INCHES, MAXIMUM INSULATION .162, BOLT HOLE 1/2 INCH, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Standard Package; 1/2 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1-1/4 Inch L X 0.72 Inch W X 0.03 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210818542
• SKU Name: t&b rb753
