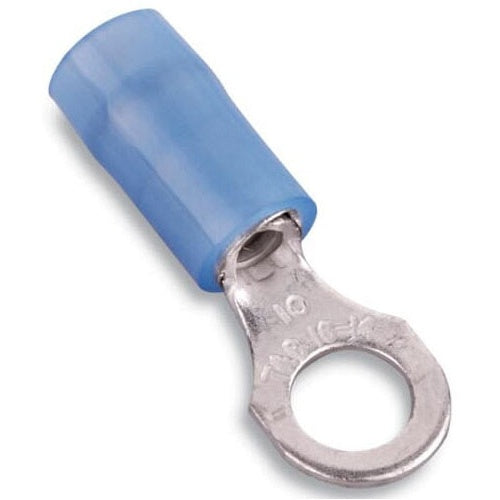

T&B RB853 Insulated Nylon Ring Terminal 18-14 Bolt No6 Blue

Overview

T&B RB853 Insulated Nylon Ring Terminal 18-14 Bolt No6 Blue

Product Specifications

• UPC: 78621081855
• Temperature Rating: 105 Deg C
• Standard Package: 5000 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length x 0.31 Inch Width x 0.03 Inch Thickness; Insulation Diameter 0.162 Inch; Material Copper; Finish Electro Tin Plated; Flammability Rating UL 94V-2
• Catalog Number: RB853
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 18 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH .89 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .162, BOLT HOLE #6, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 1,000 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 0.89 Inch Length X 0.31 Inch Width X 0.03 Inch Thickness; Insulation Diameter 0.162 Inch; Material Copper; Finish Electro Tin Plated; Flammability Rating UL 94V-2
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210818559
• SKU Name: t&b rb853
