Product information
Overview

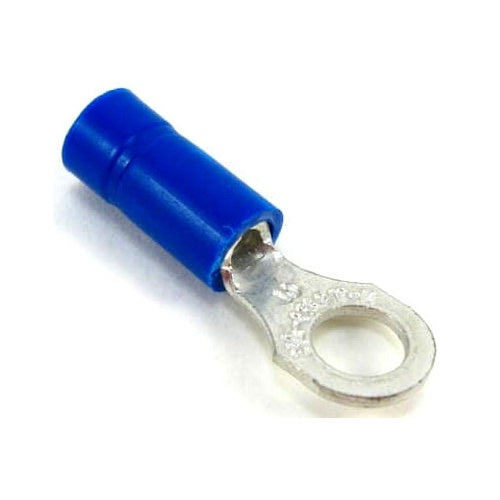

T&B RB877M Insulated Vinyl Ring Terminal 18-14 No10 Blue Mylar
Product Specifications
- UPC: 78621086247
- Stud Size: #10
- Temperature Rating: 105 DEG C
- Standard Package: 1000 PER MYLAR TAPE
- Approval: UL 486-A, CSA 22.2
- Additional Information: DIMENSION 0.97 INCH LENGTH X 0.31 INCH WIDTH X 0.03 INCH THICK; BRAZED SEAM SERRATED BARREL; FINISH ELECTROPLATED TIN; WITH MYLAR TAPE
- Catalog Number: RB877M
- Brand Name: Sta-Kon.
- Model: RB
- Type: STANDARD
- Minimum Conductor Size: 18 AWG
- Maximum Conductor Size: 14 AWG
- Color: BLUE
- Insulation Type: VINYL INSULATED
- Catalog Description: VINYL INSULATED RING TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .170, BOLT HOLE #10, WIRE RANGE #18-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, ON MYLAR TAPE, 1,000 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Blue Color; 18 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 1000 Per Mylar Tape Standard Package; #10 Stud Size; Vinyl Insulated Insulation Type; Sta-Kon. Brand; Dimension 0.97 Inch Length X 0.31 Inch Width X 0.03 Inch Thick; Brazed Seam Serrated Barrel; Finish Electroplated Tin; With Mylar Tape; RB Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210862477
- SKU Name: t&b rb877m
