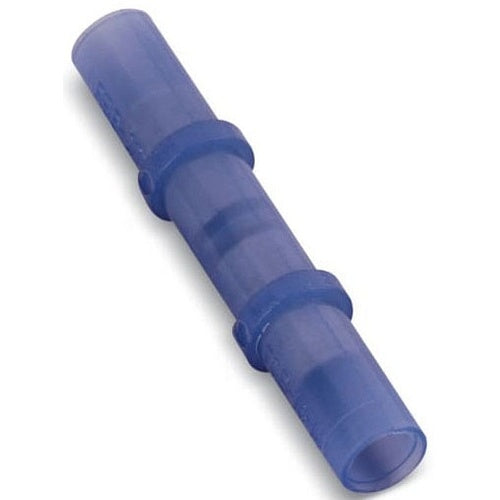

T&B RBB23 Insulated Nylon Aircraft Splice 16-14 Awg

Overview

T&B RBB23 Insulated Nylon Aircraft Splice 16-14 Awg

Product Specifications

• UPC: 78621081953
• Color: Blue
• Material: Electro Tin Plated Copper
• Temperature Rating: 105 Deg C
• Standard Package: 500
• Approval: UL 94, CSA
• Additional Information: Applicable Standard MIL-T-7928
• Catalog Number: RBB23
• Model: RBB
• Type: Butt
• Voltage Rating: 600 V
• Length: 1.52 Inch
• Barrel Outer Diameter: 0.28 Inch
• Conductor Size: 16 to 14 AWG
• Insulation Type: Nylon Insulated
• Catalog Description: NYLON INSULATED AIRCRAFT SPLICE, LENGTH 1.52 INCHES, WIDTH .28 INCHES, WIRE RANGE #16-#14 AWG, COLOR BLUE, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Blue Color; 1.52 Inch; UL 94, CSA Approval; 600 V Voltage Rating; 105 Deg C Temperature Rating; 500 Standard Package; 16 to 14 AWG Conductor Size; Nylon Insulated Insulation Type; 0.28 Inch Barrel Outer Diameter; Applicable Standard mil-T-7928; RBB Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210819532
• SKU Name: t&b rbb23
