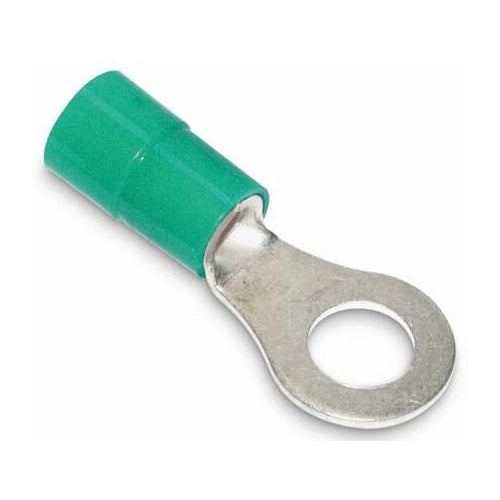

T&B RBC14-14 Insulated Nylon Ring Terminal 16-14 Heavy Duty 1/4 Green

Overview

T&B RBC14-14 Insulated Nylon Ring Terminal 16-14 Heavy Duty 1/4 Green

Product Specifications

• UPC: 78621089908
• Temperature Rating: 105 Deg C
• Standard Package: 250 per Outer Pack
• Approval: UL 486A/B, CSA C22.2
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.1 Inch Length x 0.51 Inch Width x 0.05 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Catalog Number: RBC14-14
• Brand Name: Sta-Kon
• Type: Heavy Duty, Funnel Entry
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Green
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NYLON INSULATED HEAVY-DUTY RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .51 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #16-#14 HEAVY DUTY, COLOR GREEN, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Heavy Duty, Funnel Entry Type; Green Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.1 Inch Length X 0.51 Inch Width X 0.05 Inch Thickness; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210899084
• SKU Name: t&b rbc1414
