Product information
Overview

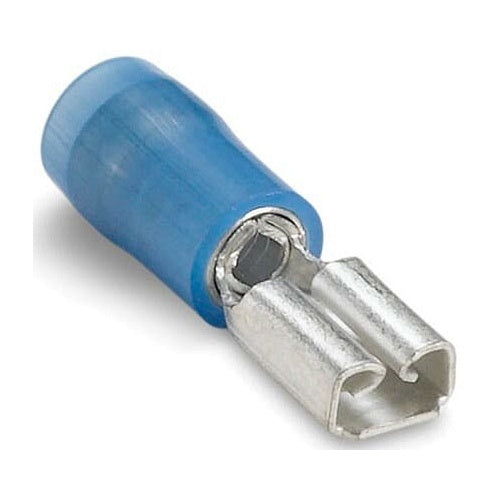

T&B RBD14-182 Insulated Nylon Female-187 Disconnect 16-14 Len .83
Product Specifications
- UPC: 78621081631
- Standard Package: 100
- Approval: UL, CSA
- Additional Information: Overall Dimension 0.83 Inch L x 0.23 Inch W; Material Electro Tin Plated Brass
- Catalog Number: RBD14-182
- Model: 187
- Tab Size: 0.187 Inch x 0.02 Inch
- Minimum Conductor Size: 16 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Nylon Insulated
- Temperature Rating: 105 Deg C
- Catalog Description: NYLON INSULATED FEMALE DISCONNECT, LENGTH .83 INCHES, WIDTH .23 INCHES, MAXIMUM INSULATION .163, TAB SIZE .187X.020, WIRE RANGE #16-#14 AWG, COLOR BLUE, BRASS, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 100 Standard Package; Nylon Insulated Insulation Type; 0.187 Inch X 0.02 Inch Tab Size; Overall Dimension 0.83 Inch L X 0.23 Inch W; Material Electro Tin Plated Brass; 187 Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Female Disconnect
- Unspsc: 39121447
- UPC 12 Digit: 786210816319
- SKU Name: t&b rbd14182
