Product information
Overview

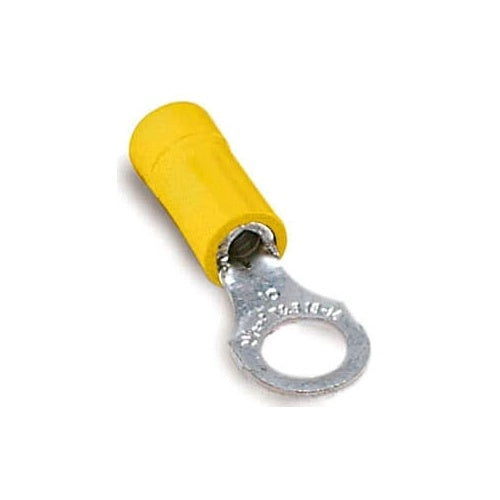

T&B RC10-10X Expanded Insulated Nylon Ring Terminal 12-10, No10,
Product Specifications
- UPC: 78621080441
- Temperature Rating: 105 Deg C
- Standard Package: 50
- Approval: UL 486-A, CSA 22.2
- Additional Information: Dimension 1.1 Inch L x 0.37 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
- Catalog Number: RC10-10X
- Model: RC
- Type: Standard
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated, Expanded Entry
- Stud Size: #10
- Catalog Description: NYLON INSULATED EXPANDED ENTRY RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .250, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 50 Standard Package; #10 Stud Size; Nylon Insulated, Expanded Entry Insulation Type; Dimension 1.1 Inch L X 0.37 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RC Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210804415
- SKU Name: t&b rc1010x
