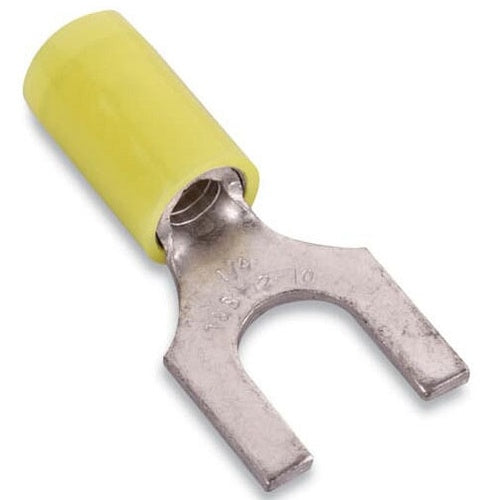

T&B RC10-14F Insulated Nylon Fork Terminal 12-10 Bh 1/4" Yellow

Overview

T&B RC10-14F Insulated Nylon Fork Terminal 12-10 Bh 1/4" Yellow

Product Specifications

• UPC: 78621080443
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length x 0.5 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
• Catalog Number: RC10-14F
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: 1/4 Inch
• Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH 1.12 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 250 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length X 0.5 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210804439
• SKU Name: t&b rc1014f
