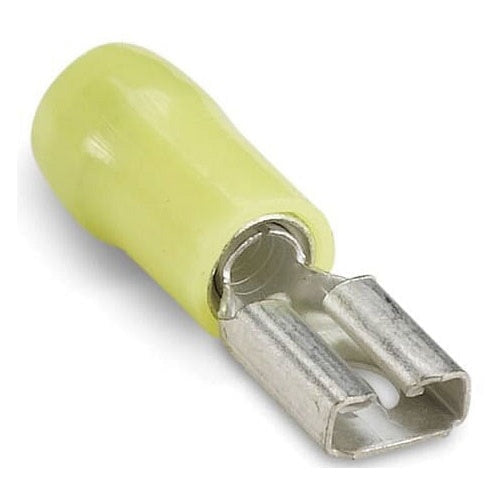

T&B RC10-250F Insulated Nylon Female-250 Disconnect 12-10 Len 1.0

Overview

T&B RC10-250F Insulated Nylon Female-250 Disconnect 12-10 Len 1.0

Product Specifications

• UPC: 78621087420
• Insulation Type: Nylon Self-Insulated
• Temperature Rating: 105 Deg C
• Standard Package: 250 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 300 Volt; Overall Dimension 1.04 Inch Length x 0.29 Inch Width; Maximum Insulation 0.215 Inch; Material Electro Tin Plated Brass
• Catalog Number: RC10-250F
• Brand Name: Sta-Kon
• Model: 250
• Type: Funnel Entry
• Tab Size: 0.25 Inch x 0.032 Inch
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Catalog Description: NYLON INSULATED FEMALE DISCONNECT, LENGTH 1.04 INCHES, WIDTH .29 INCHES, MAXIMUM INSULATION .215, TAB SIZE .250X.032, WIRE RANGE #12-#10, COLOR YELLOW, COPPER, TIN PLATED, 50 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 250 Per Outer Pack Standard Package; Nylon Self-Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Voltage Rating 300 Volt; Overall Dimension 1.04 Inch Length X 0.29 Inch Width; Maximum Insulation 0.215 Inch; Material Electro Tin Plated Brass; 250 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Female Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210874203
• SKU Name: t&b rc10250f
