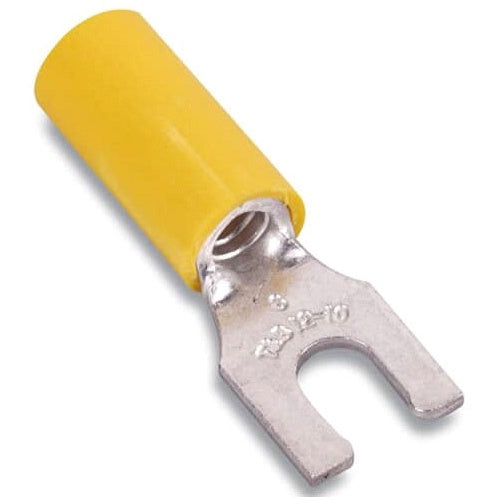

T&B RC10-6FL Insulated Nylon Locking Fork Terminal 12-10 No6 Yellow

Overview

T&B RC10-6FL Insulated Nylon Locking Fork Terminal 12-10 No6 Yellow

Product Specifications

• UPC: 78621088755
• Standard Package: 50 per Pack
• Approval: UL 486A, CSA 22.2
• Additional Information: Size 0.97 Inch Length x 0.31 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: RC10-6FL
• Type: Locking
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Temperature Rating: 105 Deg C
• Catalog Description: NYLON INSULATED LOCKING FORK TERMINAL, LENGTH .97 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #6, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Locking Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 50 Per Pack Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Size 0.97 Inch Length X 0.31 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210887555
• SKU Name: t&b rc106fl
