Product information
Overview

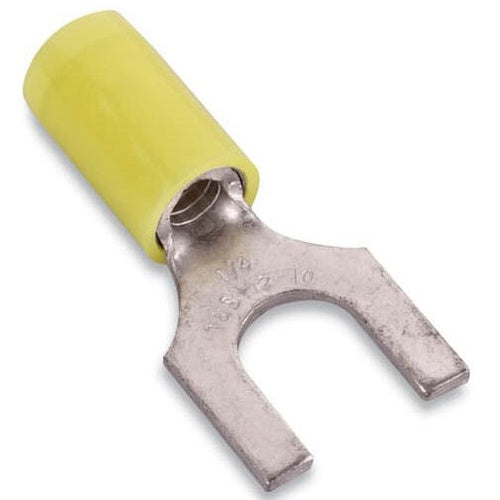

T&B RC1123 Insulated Nylon Fork Terminal 12-10 Bh No8 Yellow
Product Specifications
- UPC: 78621082026
- Temperature Rating: 105 Deg C
- Approval: UL, CSA
- Additional Information: Size 1 Inch L x 0.37 Inch W; Finish Electroplated Tin
- Catalog Number: RC1123
- Model: RC
- Type: Standard
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated
- Stud Size: #8
- Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH 1.00 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #8, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #8 Stud Size; Nylon Insulated Insulation Type; Size 1 Inch L X 0.37 Inch W; Finish Electroplated Tin; RC Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210820262
- SKU Name: t&b rc1123
