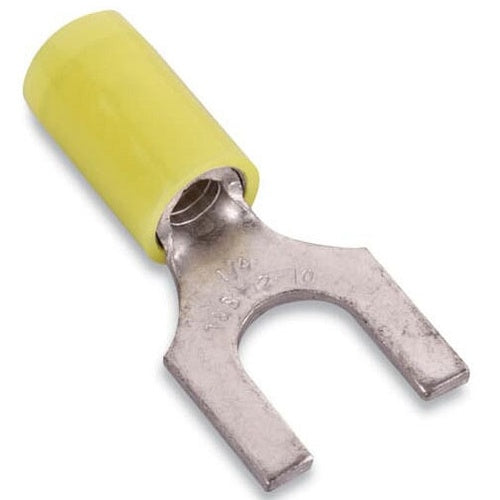

T&B RC1153 Insulated Nylon Fork Terminal 12-10 Bh No10 Yellow

Overview

High-performance electrical connectivity, Durable construction for harsh environments, Easy installation and maintenance, Meets industry safety standards

Product Specifications

• UPC: 78621082029
• Temperature Rating: 105 Deg C
• Standard Package: 5000 per Outer Pack
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 Volt; Overall Dimension 1 Inch Length x 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
• Catalog Number: RC1153
• Brand Name: Sta-Kon
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: #10
• Catalog Description: NYLON INSULATED FORK TERMINAL, LENGTH 1.00 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .210, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; #10 Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1 Inch Length X 0.37 Inch Width; Barrel Type Brazed Seam; Material Copper; Finish Electro Tin Plated
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Fork Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210820293
• SKU Name: T&B RC1153
