Product information
Overview

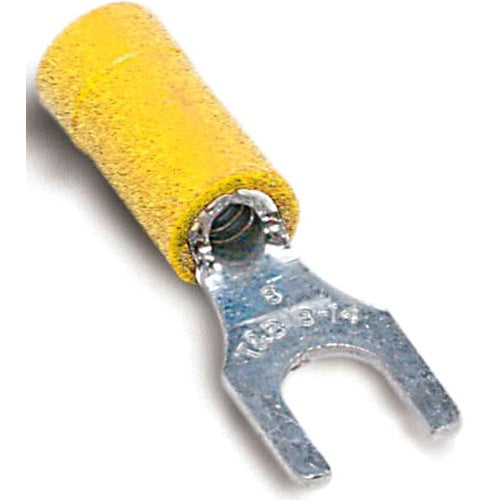

T&B RC1167 Insulated Vinyl Fork Terminal No12-10 1/4" Yellow
Product Specifications
- UPC: 78621082033
- Temperature Rating: 105 Deg C
- Approval: UL, CSA
- Additional Information: Size 1.15 Inch L x 1/2 Inch W; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper
- Catalog Number: RC1167
- Model: RC
- Type: Standard
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Vinyl Insulated
- Stud Size: #6
- Catalog Description: VINYL INSULATED FORK TERMINAL, LENGTH 1.15 INCHES, WIDTH .50 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; #6 Stud Size; Vinyl Insulated Insulation Type; Size 1.15 Inch L X 1/2 Inch W; Brazed Seam Barrel; Material Electrolytic Tin Plated Copper; RC Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Fork Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210820330
- SKU Name: t&b rc1167
