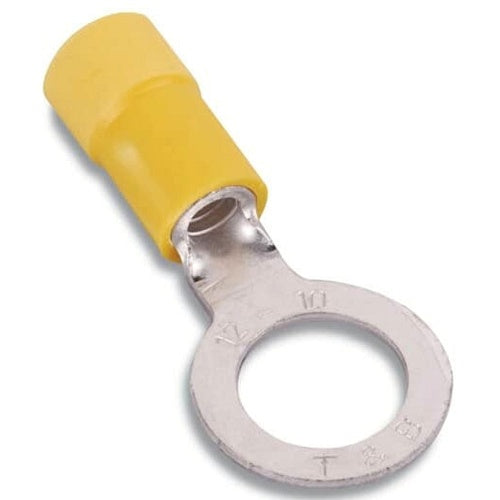

T&B RC337-250 ExPanduited Insulated Vinyl Ring Terminal, 12-10, No6

Overview

T&B RC337-250 Expanded Insulated Vinyl Ring Terminal, 12-10, No6

Product Specifications

• UPC: 78621081980
• Temperature Rating: 105 DEG C
• Standard Package: 500
• Approval: UL 486-A, CSA 22.2
• Additional Information: DIMENSION 1.06 INCH LENGTH X 0.31 INCH WIDTH X 0.04 INCH THICK; FINISH ELECTROPLATED TIN
• Catalog Number: RC337-250
• Brand Name: Sta-Kon.
• Model: RC
• Type: STANDARD
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Insulation Type: VINYL INSULATED
• Stud Size: #6
• Catalog Description: EXPANDED VINYL INSULATED RING TERMINAL, LENGTH 1.06 INCHES, WIDTH .31 INCHES, MAXIMUM INSULATION .250, BOLT HOLE #6, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Standard Package; #6 Stud Size; Vinyl Insulated Insulation Type; Sta-Kon. Brand; Dimension 1.06 Inch Length X 0.31 Inch Width X 0.04 Inch Thick; Finish Electroplated Tin; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210819808
• SKU Name: t&b rc337250
