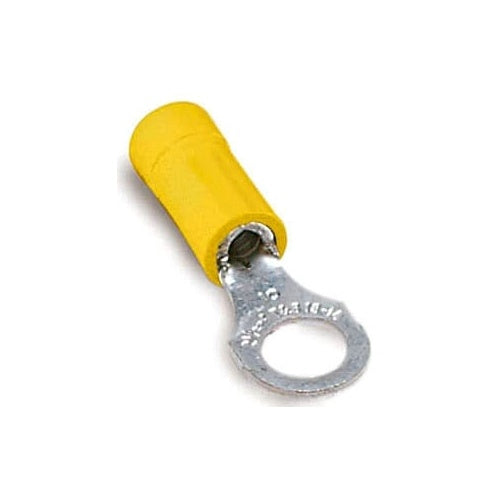

T&B RC364 ExPanduited Insulated Nylon Ring Terminal 12-10, No10

Overview

T&B RC364 Expanded Insulated Nylon Ring Terminal 12-10, No10

Product Specifications

• UPC: 78621081986
• Approval: UL 486A/B, CSA 22.2
• Additional Information: Size 1.1 Inch Length x 0.37 Inch Width; Maximum Insulation 0.25 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Catalog Number: RC364
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated, Expanded Entry
• Stud Size: #10
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Pack
• Catalog Description: NYLON INSULATED EXPANDED ENTRY RING TERMINAL, LENGTH 1.10 INCHES, WIDTH .37 INCHES, MAXIMUM INSULATION .250, BOLT HOLE #10, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Per Pack Standard Package; #10 Stud Size; Nylon Insulated, Expanded Entry Insulation Type; Size 1.1 Inch Length X 0.37 Inch Width; Maximum Insulation 0.25 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210819860
• SKU Name: t&b rc364
