Product information
Overview

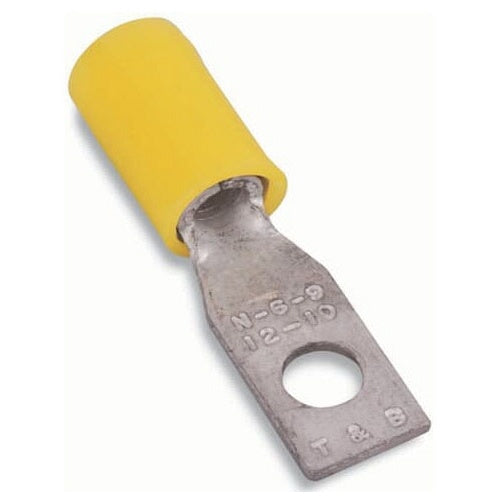

T&B RC480 Insulated Nylon Rectangular Ring Terminal 12-10 No8 Yellow
Product Specifications
- UPC: 78621081991
- Temperature Rating: 105 DEG C
- Standard Package: 500
- Approval: UL 486-A, CSA 22.2
- Additional Information: DIMENSION 1.531 INCH LENGTH X 0.39 INCH WIDTH X 0.04 INCH THICK; SHAPE RECTANGULAR; FINISH ELECTROPLATED TIN
- Catalog Number: RC480
- Brand Name: Sta-Kon.
- Model: RC
- Type: STANDARD
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Insulation Type: NYLON INSULATED
- Stud Size: #8
- Catalog Description: NYLON INSULATED RECTANGULAR RING TERMINAL, LENGTH 1.531 INCHES, WIDTH .390 INCHES, BOLT HOLE #8, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Standard Package; #8 Stud Size; Nylon Insulated Insulation Type; Sta-Kon. Brand; Dimension 1.531 Inch Length X 0.39 Inch Width X 0.04 Inch Thick; Shape Rectangular; Finish Electroplated Tin; RC Model
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210819914
- SKU Name: t&b rc480
