Product information
Overview

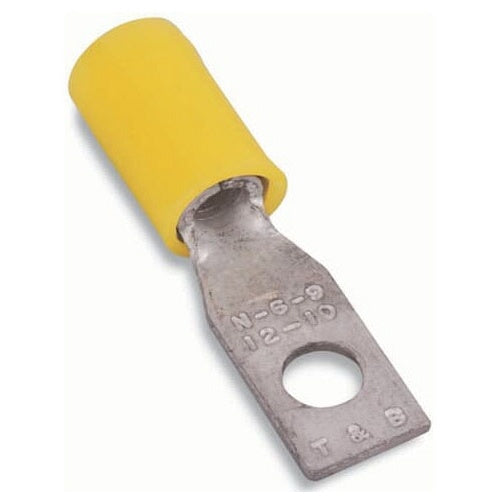

T&B RC482 Insulated Nylon Rectangular Ring Terminal 12-10 No8 Yellow
Product Specifications
- UPC: 78621081993
- Approval: UL, CSA
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.28 Inch Length x 0.302 Inch Width; Material Copper; Finish Electro Tin Plated
- Catalog Number: RC482
- Type: Funnel Entry
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon
- Stud Size: #8
- Standard Package: 5000 per Outer Pack
- Catalog Description: NYLON INSULATED RECTANGULAR RING TERMINAL, LENGTH 1.281 INCHES, WIDTH .302 INCHES, BOLT HOLE #8, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
- Category: Small Terminals & Connectors
- Full Technical Description: Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL, CSA Approval; 5000 Per Outer Pack Standard Package; #8 Stud Size; Nylon Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.28 Inch Length X 0.302 Inch Width; Material Copper; Finish Electro Tin Plated
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210819938
- SKU Name: t&b rc482
