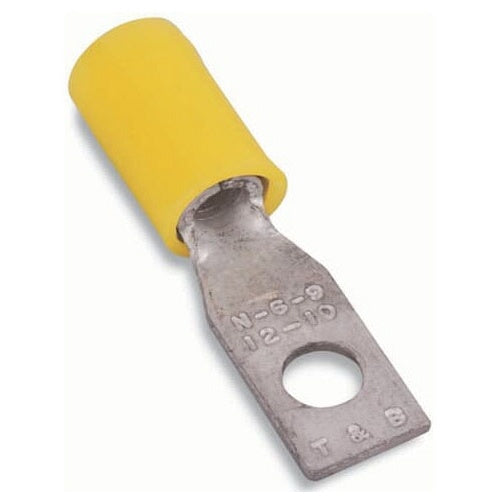

T&B RC484 Insulated Nylon Rectangular Ring Terminal 12-10 No6 Yellow

Overview

T&B RC484 Insulated Nylon Rectangular Ring Terminal 12-10 No6 Yellow

Product Specifications

• UPC: 78621081995
• Temperature Rating: 105 Deg C
• Standard Package: 500
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.203 Inch L x 0.237 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; Shape Rectangular
• Catalog Number: RC484
• Model: RC
• Type: Standard, Funnel Entry
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: #6
• Catalog Description: NYLON INSULATED RECTANGULAR RING TERMINAL, LENGTH 1.203 INCHES, WIDTH .237 INCHES, BOLT HOLE #6, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Standard, Funnel Entry Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Standard Package; #6 Stud Size; Nylon Insulated Insulation Type; Dimension 1.203 Inch L X 0.237 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; Shape Rectangular; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210819952
• SKU Name: t&b rc484
