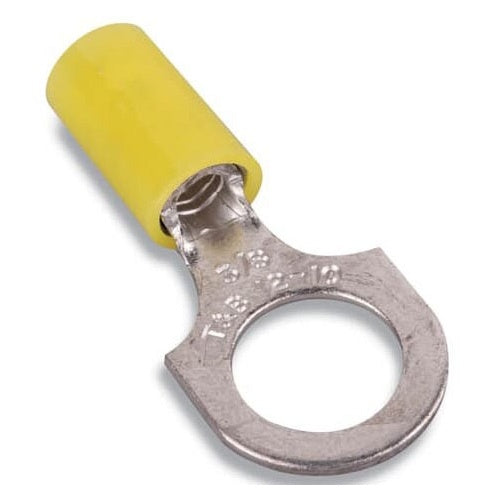

T&B RC703 Insulated Nylon Ring Terminal 12-10 Bolt 5/16 Yellow

Overview

T&B RC703 Insulated Nylon Ring Terminal 12-10 Bolt 5/16 Yellow

Product Specifications

• UPC: 78621081998
• Temperature Rating: 105 Deg C
• Standard Package: 500
• Approval: UL 486-A, CSA 22.2
• Additional Information: Dimension 1.21 Inch L x 0.53 Inch W x 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V
• Catalog Number: RC703
• Model: RC
• Type: Standard
• Minimum Conductor Size: 12 AWG
• Maximum Conductor Size: 10 AWG
• Color: Yellow
• Insulation Type: Nylon Insulated
• Stud Size: 5/16 Inch
• Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.21 INCHES, WIDTH .53 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 5/16 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486-A, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Standard Package; 5/16 Inch Stud Size; Nylon Insulated Insulation Type; Dimension 1.21 Inch L X 0.53 Inch W X 0.04 Inch Thk; Material Copper; Finish Electro Tin Plated; Voltage Rating 600 V; RC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Ring Lug
• Unspsc: 39121432
• UPC 12 Digit: 786210819983
• SKU Name: t&b rc703
