Product information
Overview

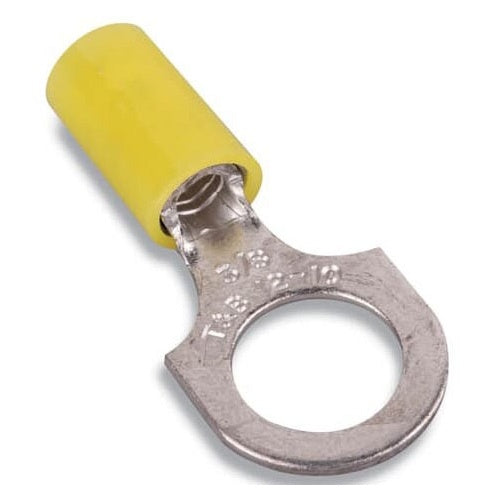

T&B RC713 Insulated Nylon Ring Terminal 12-10 Bolt 1/4 Yellow
Product Specifications
- UPC: 78621082003
- Temperature Rating: 105 Deg C
- Standard Package: 5000 per Outer Pack
- Approval: UL 486A/B, CSA C22.2
- Additional Information: Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length x 0.53 Inch Width x 0.04 Inch Thickness; Insulation Diameter 0.12 Inch; Material Copper; Finish Electro Tin Plated; Flammability Rating UL 94V-2
- Catalog Number: RC713
- Brand Name: Sta-Kon
- Type: Standard
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated
- Stud Size: 1/4 Inch
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.12 INCHES, WIDTH .53 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/4 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Standard Type; Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, CSA C22.2 Approval; 105 Deg C Temperature Rating; 5000 Per Outer Pack Standard Package; 1/4 Inch Stud Size; Nylon Insulated Insulation Type; Voltage Rating 600 Volt; Overall Dimension 1.12 Inch Length X 0.53 Inch Width X 0.04 Inch Thickness; Insulation Diameter 0.12 Inch; Material Copper; Finish Electro Tin Plated; Flammability Rating UL 94V-2
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210820033
- SKU Name: t&b rc713
