Product information
Overview

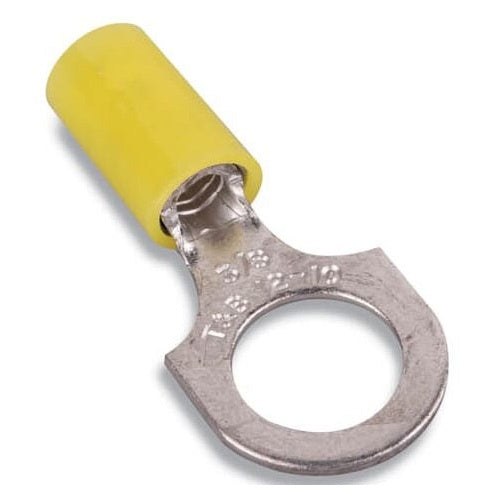

T&B RC753 Insulated Nylon Ring Terminal 12-10 Bolt 1/2" Yellow
Product Specifications
- UPC: 78621082017
- Approval: UL 486A/B, CSA 22.2
- Additional Information: Size 1.37 Inch Length x 0.72 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Catalog Number: RC753
- Minimum Conductor Size: 12 AWG
- Maximum Conductor Size: 10 AWG
- Color: Yellow
- Insulation Type: Nylon Insulated
- Stud Size: 1/2 Inch
- Temperature Rating: 105 Deg C
- Standard Package: 500 per Pack
- Catalog Description: NYLON INSULATED RING TERMINAL, LENGTH 1.37 INCHES, WIDTH .72 INCHES, MAXIMUM INSULATION .210, BOLT HOLE 1/2 INCH, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED, 500 PACK
- Category: Small Terminals & Connectors
- Full Technical Description: Yellow Color; 12 AWG min. Conductor Size; 10 AWG Max. Conductor Size; UL 486A/B, CSA 22.2 Approval; 105 Deg C Temperature Rating; 500 Per Pack Standard Package; 1/2 Inch Stud Size; Nylon Insulated Insulation Type; Size 1.37 Inch Length X 0.72 Inch Width; Maximum Insulation 0.21 Inch; Voltage Rating 600 Volt; Material Electrolytic Tin Plated Copper
- Made In Usa: Yes
- Manufacturer: ABB, Inc. - Thomas & Betts
- Manufacturer Brand: T&B Corp.
- Sub Category: Ring Lug
- Unspsc: 39121432
- UPC 12 Digit: 786210820170
- SKU Name: t&b rc753
